AutoSim Pro Master Kit

Since its release in 2012, the AutoSim sensor simulator has proven itself extremely popular with both technicians and professional diagnosticians thanks to its friendly user interface, attractive and reliable operation.

Category:

Description

Automotive sensor simulator and signal generator with additional accessories

Since its release in 2012, the AutoSim sensor simulator has proven itself extremely popular with both technicians and professional diagnosticians thanks to its friendly user interface, attractive and reliable operation.

Eight years after the release of the original model, Ditex presents the second generation AutoSim Pro. Distinguished by its completely updated design and significant functional improvements, the AutoSim Pro Automotive Sensor Simulator from Ditex is a very useful tool suitable for both cars and trucks applications in a variety of working situations. This advanced sensor simulator creates an electrically equivalent system to simulate the sensors and actuators found on an actual vehicle.

Master kit includes the most frequently used additional accessories to the already popular AutoSim Pro Automotive Sensor Simulator from Ditex.

Additional information

Features

Handheld standalone device
Intuitive operation via function keys;
Ultra-fast boot time;
Excellent industrial design;
Operates on both 12 and 24 Volt electrical systems;
Illuminated 2.4" TFT LCD 320х240 display for optimum visibility;
Protection against reverse polarity connection;
Low distortion factor and high signal-to-noise ratio for brilliant signals;
Adjustable frequency range from 0.1 Hz to 20 kHz;
Generating variable power PWM signals up to 4 A;
One-wire hook-up PWM output;
Precise DC voltage source;
Internal Micro SD card for firmware updates.
Applications

Simulates actual working condition of the most automotive sensors;
Efficient fault elimination without replacing parts "on suspicion";
Simulates O2 sensor signals: Zirconia and Titania;
Checking of basic ECU operation;
Controlling the output signal allows to check the ECU response and operation;
It can drive ECU into “open” or “closed” loop;
Activation of a large number of actuators;
Variable adjustable voltage output from 0 to ±12 volts;
Simulates crank and cam sensors inductive and hall;
In both crank and cam modes you are able to adjust the number of teeth and the missing teeth.

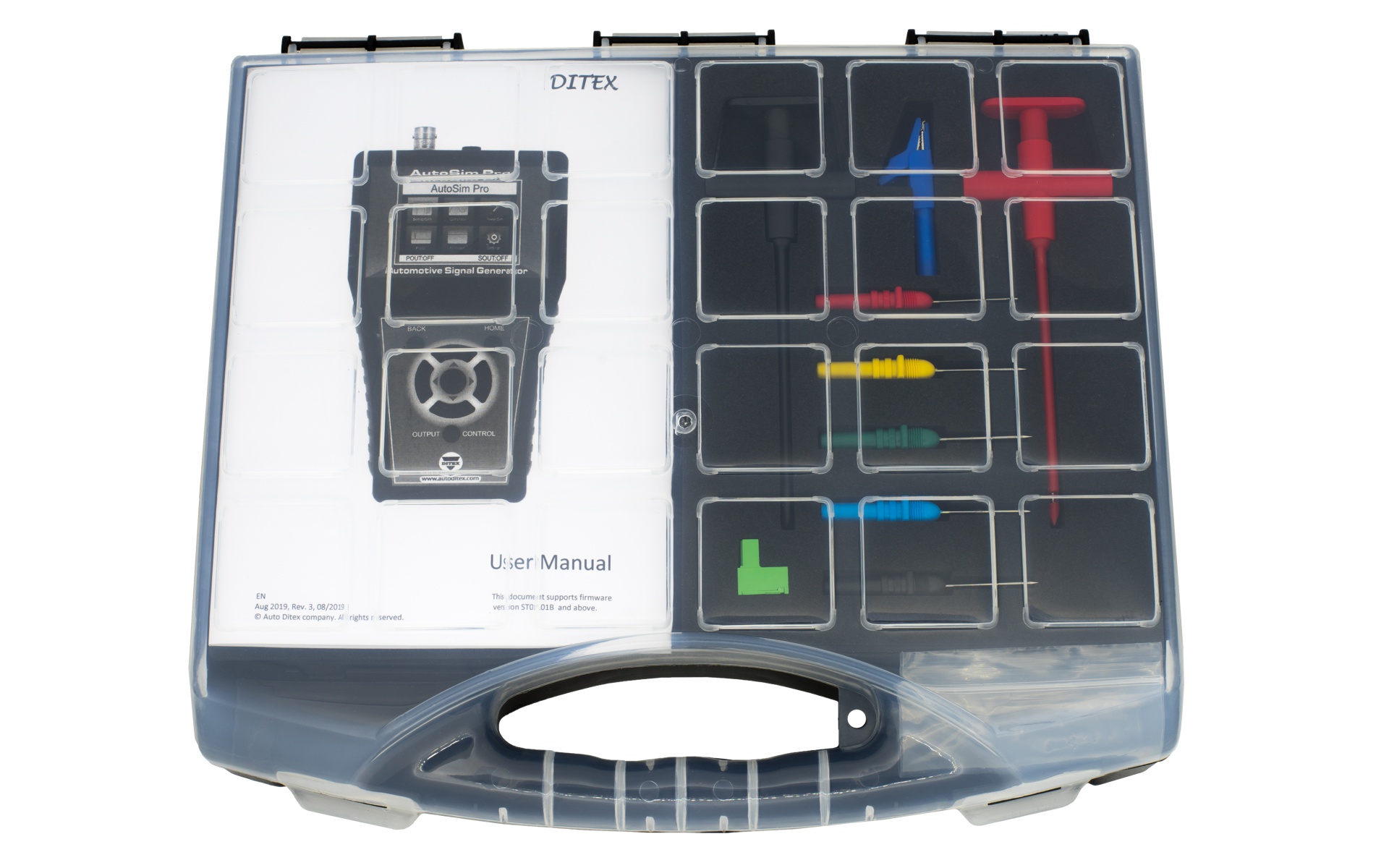

In The Set

Plastic Storage Box with Foam;
AutoSim Pro basic kit;
Insulated crocodile clip, Pack of 2 (Red, Black);
Back-pinning Probe Set (5 needles);
Crocodile Clip, 4 mm, 25 A, Red;
Crocodile Clip, 4 mm, 25 A, Black;
Crocodile Clip, 4 mm, 15 A, Blue;
Pluggable Terminal Block (2-Pin, 5mm);
SD card to Micro sd card adapter.
